XY-GU-A-B New Condition Good Quality Soft Type Facial Tissue Paper Machine Production Line
Outline:
The automatic facial tissue production line comprises a facial tissue folding machine, a single-channel log saw cutting machine, and a single-bag packing machine. The machines operate smoothly and steadily, transforming raw materials into finished products. This production line features a high degree of automation, saving labor costs and reducing labor intensity, making it the optimal choice for the production of tissue products.
XY-GU-20A New Model Facial Tissue Machine
Outline:
The innovative new facial tissue machine effortlessly trims the base paper with a precision knife roll, skillfully folding it into an interlocking chain of rectangular or square tissues. Powered by an inverter motor, this machine operates with independent drive technology, ensuring automatic tension control and featuring an automatic sub-count function. With its high-speed operation, crisp folding, and user-friendly design, this advanced machine simplifies the tissue production process while maintaining exceptional quality.
Main Technical Parameters:
| Machine model |
XY-GU-20A |
| Unfold size of finished products |
200*(120-210)±2mm |
| Folded size of finished products |
100*210±2mm |
| The width of jumbo roll paper |
2000mm |
| Diameter of jumbo roll paper |
1100mm |
| Diameter of jumbo roll inner core |
76.2mm |
| Daily output (8 hours) |
4000~6000Kg |
| Embossing unit |
Steel to rubber roller, steel to wool roller ,steel to steel embossing roller (Customer choose ) |
| Edge embossing |
Steel to steel edge embossing, independent pneumatic regulation |
| Slitting unit |
Pneumatic slitting |
| Power |
7.5KW Main motor |
| 1.5KW(2sets) jumbo roll paper stand motor |
| Vacuum suction unit |
22KW Fan |
| Pneumatic system |
3 HP air compressor ,mini pressure 5kg/cm2PA |
| Driving system |
Timing belt |
| Overall dimension |
7950*2500*1850mm |
| Weight |
6.0T |
XY-GU-281 Single Channel Paper Roll Cutting Machine
Outline:
Cyclotron paper cutter automatically cuts folded and round roll paper towels, like removable tissue or toilet roll paper. It uses servo drive technology and frequency control for stable and precise cutting, with adjustable cutting length. The knife grinding wheel ensures quality and is cooled by compressed air or special fluid.
Main Technical Parameters:
| The length of unfinished products |
minimum 500mm(or, mini 5lines) |
| The Height of finished product |
30~130mm |
| Production Speed |
20~150cuts/min |
| Operating speed |
20~120cut/min |
| Round blade outer diameter |
Φ610mm |
| Paper cutting circular knife top speed |
980R/min |
| Finished products specification |
70~300mm |
| Paper width |
70~110mm |
| Cutting Length |
70~300mm |
| Left-over Length |
20~65mm |
| Power |
11KW |
| Power supply |
380V 50Hz |
| Air pressure |
0.5~0.8MPa |
| Machine Size |
4600*1700*2500mm |
| weight |
2300~2600kg |
XY-BT-298 Full Automatic Three-Dimensional Facial Tissue Packing Machine
Main Technical Parameters:
| Technical Specifications |
Description |
| Scope of application |
Facial tissue, hand towel, napkin tissue |
| Equipment feeding mode |
ASF Full automatic |
| Max. design mechanical speed |
Max. 80 bags/min |
| Max. stable operation speed |
65 bags/min |
| Tissue length range (finished product) |
120 mm- 210 mm |
| Tissue height range(finished product) |
40 mm- 100 mm |
| Tissue width range(finished product) |
90 mm- 105 mm |
| Spare parts for change size |
3 sets |
| Machine size(L*W*H) |
4600*3620*1770mm |
| Machine weight |
About 3000KG |
| Packaging materials |
CPP film |
| Film Thickness |
0.04mm-0.055mm |
| Max film diameter |
400 mm |
| Diameter of film core |
76mm |
| Max film width |
340mm |
| Air compressor |
Minimum air pressure 5MPA
|
| Power supply |
380V/50HZ |
| Total drive power |
4.8 KW |
| Total heating power |
4.6 KW |

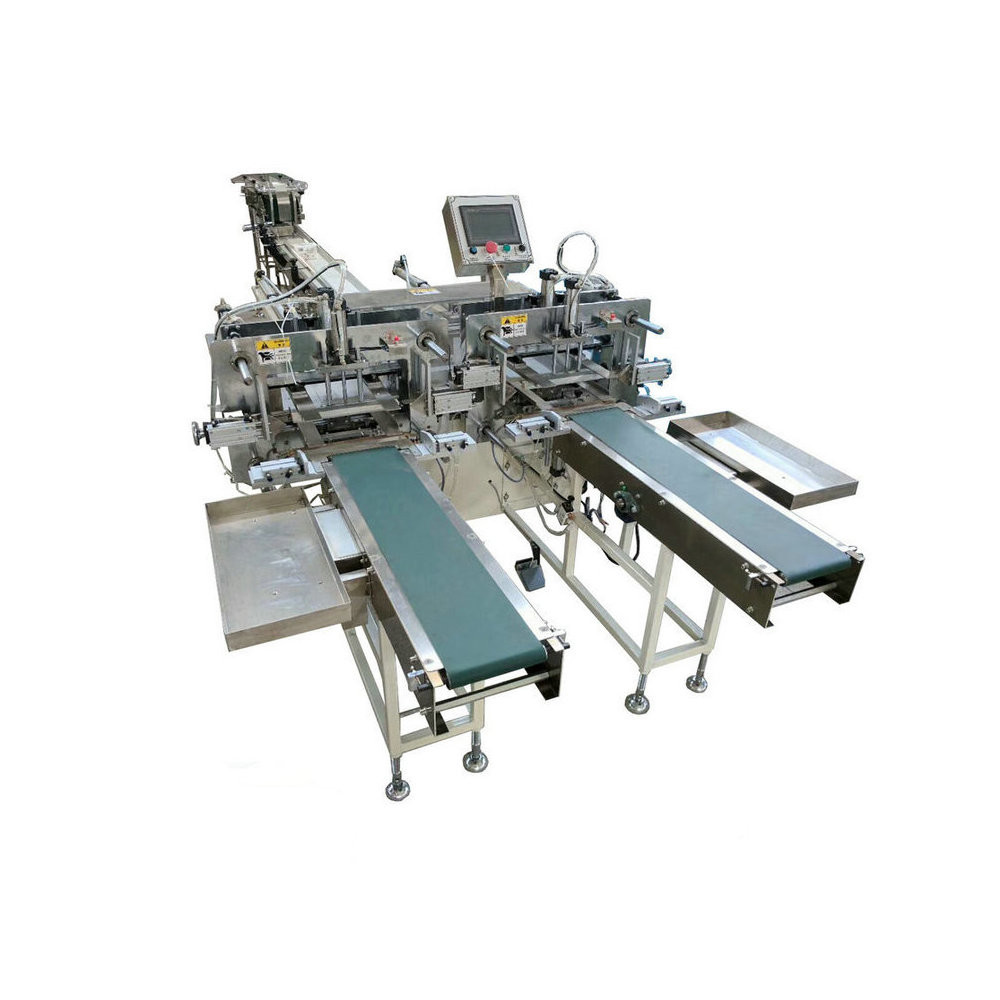

XY-GU-26B Semi Auto Multi Soft Bag Tissue Paper Packing Machine
Outline:
This machine is suitable for soft packing of middle package, belt automatic blanking flip device, single row double adjustable, the activities of the head to facilitate the workers bagging, automatic delivery of finished products, provincial efficient. Double head out of the material only one person bagging!
Main Technical Paremeters:
| Overall size |
4800*2000*1350mm |
|
Speed
|
14-18bags/min
|
|
Packing size(mm) One line
|
L(180-400)*W(130-200)mm
|
|
Thickness
|
H:70-100mm
|
|
Packing size(mm) Two lines
|
L(180-400)*W(260-400)
|
|
Packing type(bag) One line
|
1*3,1*4,1*5
|
|
Packing type(bag) Two line
|
2*3,2*4,2*5
|
FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
